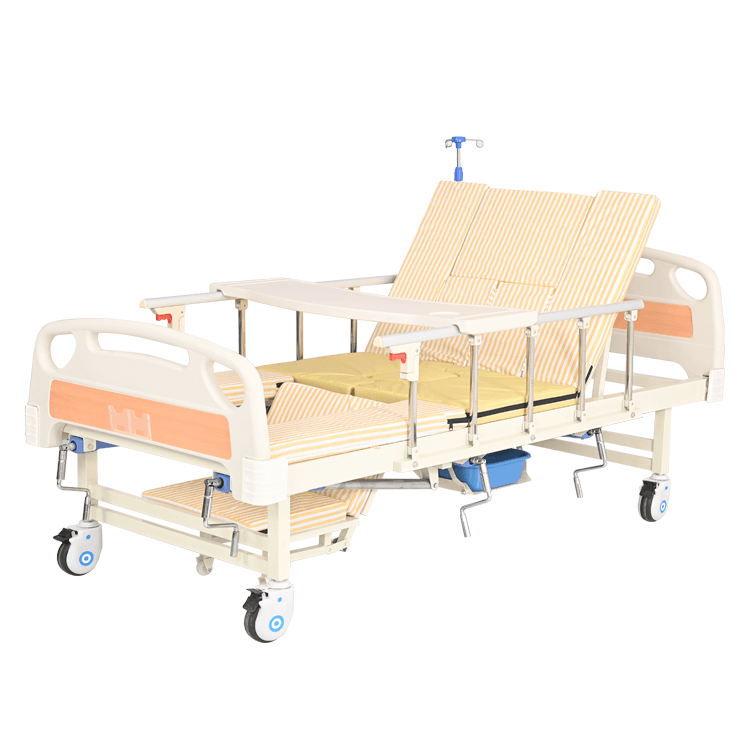

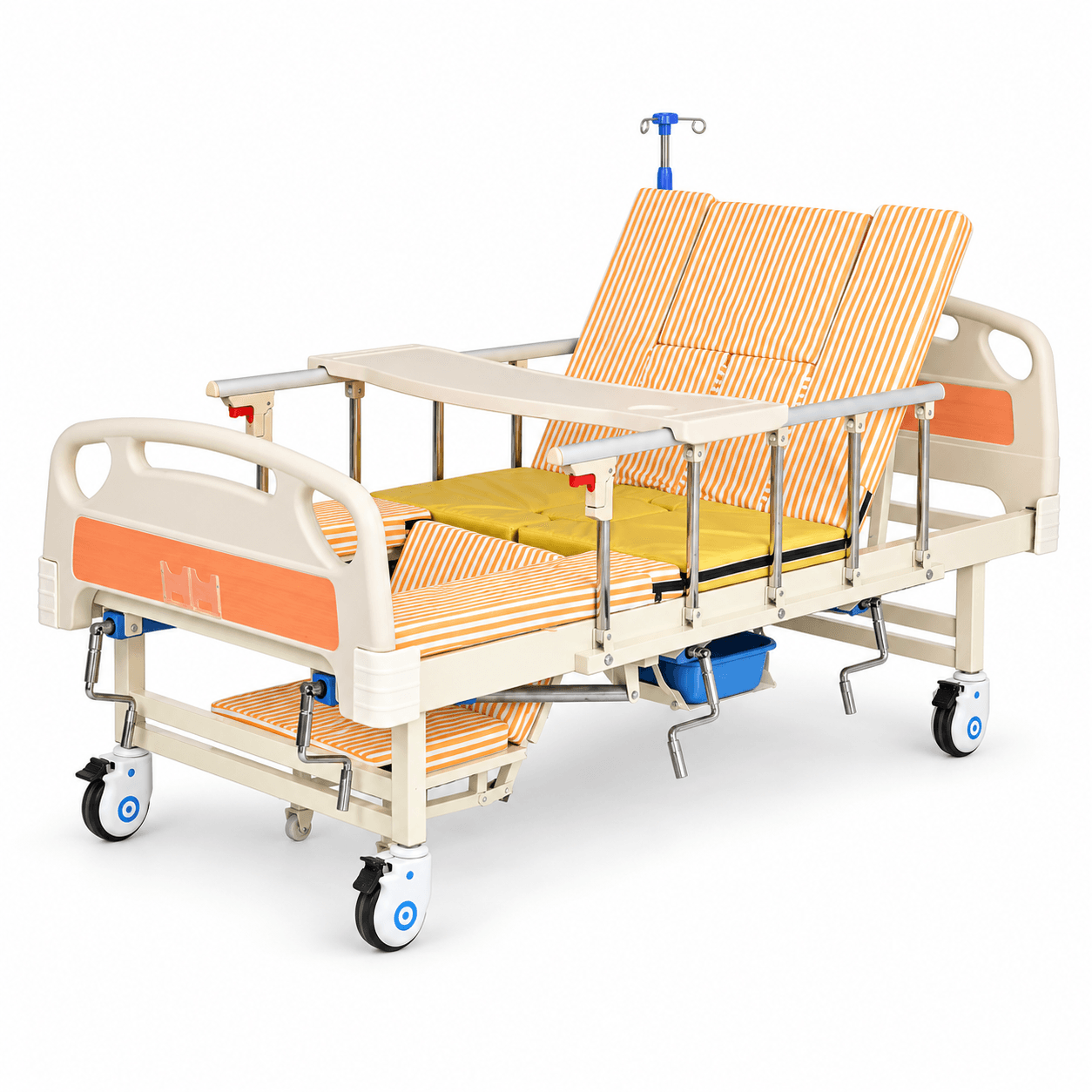

Morecare Caremate - Manual Nursing Bed with Side Turning & Commode
A manual nursing bed with four separate cranks for backrest, leg positioning, assisted left/right side positioning and bedside commode access.





Delivery
Support
Eligibility
Support
Product Information
Everything you need to know about this product.
Caregiver-Assisted Bed Care Without Electricity
Morecare CareMate combines manual positioning, assisted side repositioning and bedside toileting in one nursing bed. It is intended for people who need regular help with bed-based daily care and for caregivers who prefer adjustments that do not depend on mains electricity.
- Four Separate Cranks – Operate the backrest, leg section, side-positioning mechanism and commode opening independently.
- Assisted Side Positioning – The bed-platform mechanism moves towards either side to help caregivers access and reposition the user. Hands-on assistance may still be necessary.
- Bedside Commode – A dedicated mechanism provides access to the integrated commode opening and collection pan.
- Care Essentials Included – Mattress, dining tray, IV pole and commode pan accompany the standard bed.
CareMate does not automatically turn a person or replace caregiver supervision. The appropriate positioning angles and transfer method depend on the user's needs.
| Section | General Information |
|---|---|
| Product Name | Morecare CareMate |
| Product Type | Manual Nursing Bed with Side Turning & Commode |
| Maximum User Weight | 150 kg |
| Operation | Fully Manual; Caregiver Operated |
| Power Requirement | No Electricity Required |
| Number of Hand Cranks | 4 |
| Crank Functions | Backrest, Leg Section, Side Positioning, Commode |
| Section | Dimensions |
| Overall Bed Width | 36 inches (3 ft) |
| Overall Bed Length | 78 inches (6.5 ft) |
| Mattress Width | 35 inches |
| Mattress Length | 76 inches |
| Published Floor-to-Mattress Height | Approximately 22 inches |
| Section | Frame & Construction |
| Bed Platform | Punched Cold-Rolled Steel |
| Frame Finish | Electrostatic Powder Coating; AkzoNobel Powder |
| Side Rails | Collapsible Aluminium |
| Section | Positioning & Adjustments |
| Backrest Elevation | Up to 80° |
| Leg Section Adjustment | 0°–45° |
| Side-Positioning Direction | Left and Right |
| Published Side-Tilting Range | 0°–80° from flat; refers to moving bed-platform section; verify measurement and safe occupied-use limits |
| Commode Operation | Dedicated Hand Crank |
| Section | Wheels & Brakes |
| Castor Diameter | 5 inches |
| Wheel Brakes | Individual Castor Brakes |
| Central Wheel-Locking System | Not Provided |
| Section | Standard Inclusions |
| Mattress | Included |
| Dining Tray | Included |
| IV Pole | Included |
| Commode Collection Pan | Included |
| Section | Supply & Warranty |
| Assembly Support | Instruction Video Provided |
| Published Delivery Estimate | Approximately 4–5 days; location and availability dependent |
| Crank Mechanism Warranty | 1 year against qualifying manufacturing defects |
Practical Applications
- Bed-Based Daily Care – Caregivers can adjust backrest and leg positions for appropriate resting, communication and selected personal-care routines.
- Assisted Side Repositioning – The side-positioning mechanism helps provide access to either side of the user's body for hygiene and nursing tasks; a caregiver may still need to support and reposition the person manually.
- Bedside Toileting – The dedicated commode opening and removable collection pan support toileting routines for users who have difficulty reaching a bathroom.
- Meals and Activities – The supplied dining tray can be used for appropriate bedside activities when the user is safely positioned.
- Care During Power Cuts – All four adjustment mechanisms remain manually operable without electricity.
CareMate helps organize assisted daily care. It does not eliminate manual handling, prevent pressure injuries or guarantee a particular clinical outcome.
Who May Be Suitable
- Adults who require regular caregiver assistance with bed-based positioning, hygiene or bedside toileting.
- Families who prefer a manually operated bed that remains usable during power outages.
- Users weighing up to 150 kg whose body dimensions, mattress needs and care plan are compatible with the bed.
When Another Solution May Be Better
- If powered operation or adjustable whole-bed height is essential, consider an appropriate electric nursing or hospital bed instead.
- If lifting a person into or out of bed is difficult, a separate patient-transfer solution may be required; CareMate does not lift patients between surfaces.
- People at risk of falling or becoming trapped in bed rails, or needing complex positioning, require an individual care and safety assessment.
- Side tilting is not an automatic patient-turning system, and its published angular range does not represent the user's actual body-turning angle.
Check Before Ordering
Share user height and weight, ability to reposition, preferred care positions, toileting requirements, room dimensions, doorway access and caregiver availability.
Confirm the 36 × 78-inch bed can enter the room and leave enough space for safe operation on both sides.
Review side-tilt use and appropriate mattress/rail compatibility before ordering.
Customization on Request
- Discuss mattress requirements, positioning accessories and other care-related modifications with Morecare before placing an order.
- Any structural or functional modification is subject to technical feasibility and written confirmation of price, dimensions and delivery time.
- The mattress must remain compatible with the moving bed sections and commode opening.
Essential Safety
- Apply individual castor brakes before transfers, toileting, adjustments and other stationary care activities.
- Operate each crank slowly. Stop at the mechanism's permitted end position; never force a crank.
- Keep fingers, clothing, bedding, tubes and wires clear of hinges, side-tilting components and commode mechanisms.
- Use left/right side positioning only according to the operating manual with a caregiver present. Confirm the permitted occupied-use range; never assume the full published mechanical angle is appropriate for the user.
- The platform's side-tilt angle is not the person's body-turning angle. Provide hands-on assistance and safeguards appropriate to the user's condition.
- Check side-rail latches and assess gaps between rails, mattress and bed frame for possible entrapment. Side rails are not a substitute for supervision.
- Keep the dining tray clear of moving sections during adjustments.
- Observe the user's posture, limbs and medical lines throughout repositioning.
- Do not exceed the stated 150 kg maximum user weight.
- Stop using the bed if cranks, brakes, rails, castors, fasteners or moving sections become loose, damaged or difficult to operate.
Cleaning & Maintenance
- Empty and clean the commode pan after use.
- Clean the frame, tray and mattress cover according to their respective care instructions, and dry surfaces thoroughly.
- Check crank assemblies, bearings, joints, rails, wheels and brakes regularly.
- Use approved replacement parts and follow the CareMate user manual for setup and maintenance.
Shipping & Installation
- Published delivery estimate: approximately 4–5 days, subject to location, stock and carrier schedules. Confirm the actual timeline when ordering.
- An assembly instruction video is provided. Check crank operation, rail latches and wheel brakes after installation and before first use.
- Verify doorway and room clearance for a bed measuring 36 × 78 inches, plus space for caregiver access.
10-Day Returns & Refunds
- Return Window: Submit a return request within 10 days of delivery for any Morecare product, subject to eligibility.
- Restocking Fee: Approved change-of-mind returns incur a 20% restocking fee.
- Courier Charges Included: Return courier charges are included within the 20% fee; no separate return-courier deduction applies.
- Transit Damage: Report damage promptly with photos, order information and packaging evidence. The current CareMate product policy states reporting within 10 days of delivery; confirm alignment with the current companywide policy.
- Defective Products: Valid defects and damage claims are handled separately from change-of-mind returns, consistent with applicable consumer rights.
- Customized Orders: The 10-day request window also applies, but any special return eligibility terms for custom work should be disclosed before ordering.
Warranty & After-Sales Support
- Warranty: One year on the manual crank mechanisms against qualifying manufacturing defects under normal use. Do not assume the same coverage applies to all other components.
- Retain the purchase invoice for warranty claims.
- Genuine Morecare spare parts, paid servicing and remote troubleshooting assistance are available according to the current product support policy.
- Morecare lists lifetime virtual technical guidance for assembly, operation and maintenance.
- Contact Morecare at +91 63775 09047 for assistance.
Refer to the current Morecare Customer Policy Guide for detailed eligibility and warranty conditions.
Product Showcase & Reviews
Watch clinical insights and customer experiences.
Every Choice Has a Story
Choosing the right rehabilitation equipment is about finding the right fit for your family. Read why families chose this product
FAQs related to Caremate - Manual Nursing Bed with Side Turning & Commode
Find quick answers to common questions about this product.
No. It is operated manually. Separate cranks adjust the backrest, leg section, left/right side-positioning mechanism and commode opening, so the bed remains operable during a power cut.
No. The published 0°–80° measurement refers to movement of a bed-platform section from flat, not the patient's body-turning angle. Safe occupied positioning and the need for hands-on support must be assessed for each user.
The bed is 36 inches wide and 78 inches long, with a 35 × 76-inch mattress and a published floor-to-mattress height of approximately 22 inches. Maximum user weight is 150 kg. Check doorway and caregiver clearance before ordering.
A dedicated hand crank opens the commode access area for use with the collection pan. The standard package includes a mattress, dining tray, IV pole and commode pan.
Yes. The bed uses 5-inch castors with individual brakes and has collapsible aluminium side rails. It does not have central wheel locking. Apply the brakes and assess rail safety before transfers and care procedures.
The manual crank mechanisms have a one-year manufacturing-defect warranty. Return requests can be made within 10 days of delivery, subject to eligibility. Approved change-of-mind returns incur a 20% restocking fee that includes return courier charges.
